LFS part 3
June 2020 (536 Words, 3 Minutes)
Now it’s time for the beginning of one of the two longest LFS chapters, chapter 5: Constructing a Temporary System. I certainly won’t be able to finish this entire chapter in one post, but let’s try to make a dent in it.
The book describes that chapter 5 has two parts. The first step is to make a host independent toolchain, and the second step is to use that toolchain to build other tools.
My first impression: lots of tech jargon that I’m not quite grasping. I’m at part 5.2 and they are saying that knowing everything right off the bat isn’t required and that a lot of it will get cleared up after some packages are built. I hope so, lol.
There are a bit of things that I do get. Chroot-ing into an environment is something I recognize from Arch. I think every package is going to have a ./config.guess script that tells you the architecture the binary is made for and it is wise to check it.

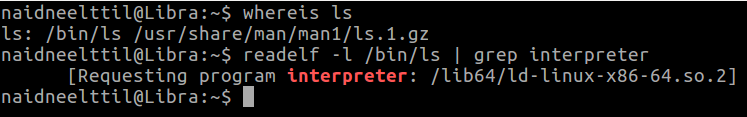

Using the provided input to figure out the name of the dynamic linker:
You can see that the interpreter I have is /lib64/ld-x86-64.so.2, so I have a 64-bit system.
I also need to find the target triplet, so I unzipped binutils-2.34.tar.xz using the command ‘tar xf’ and in the decompressed file running the config.guess script.
My triplet is x86_64-pc-linux-gnu
(also I noticed here that I wasn’t using the lfs user! Thankfully I caught that before I changed something drastic but again, I have to be careful!, just in case I am going to re extract binutils under the lfs user) and take another snapshot. Because I’m paranoid.
Now It’s time to actually build some packages! First off, binutils:
I have to make a separate build directory for it. I’m not quite sure if you need to make the build directory within the decompressed binutils-2.34 folder, but that’s what I’m going with since I think the book assumes each instruction starts in the decompressed folder.
It also recommends you to build with the command ‘time’ to figure out how long 1 SBU is for you.

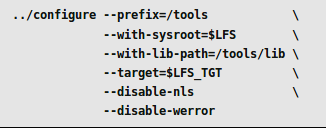

So after I prepared binutils with this:
I ran ‘time make’. This is the time result of it (now that I’m typing this, I realize I should have timed all of the commands together as the book instructed. Ah well. I’ll just add it to the next command)
I also then checked the sanity of my toolchain because I’m building a x86_64 system.
Then I ran ‘time make install’ and the time result for that is:
So 1 SBU is (2 minutes 44.953 seconds + 2.497 seconds) which is just 2 minutes and 47.45 seconds, lets just round it to 3 minutes for simplicity. Dope. per instructions I’ve deleted the decompressed file, and along it the /build folder I made.
Now for GCC! 10 SBUs, so its Approximately 30 minutes.Q
I’ve extracted it and cd’ed into it. Then the book has you extract and move around more files in GCC. This is because GCC requires GMP, MPFR, and MPC packages. I followed the instructions and installed GCC - no errors.
You know the feeling where things are going a little too well? I feel like I’ve done something wrong but I can’t quite place my finger on it. It’ll probably be exposed later on. (hopefully not too far along though!)
The next step is installing LInux API headers. This was pretty short, made sure there was no stale files, used make to make it all and then I moved it all to /tools/include.
The next step is Glibc, which took a bit longer to build, but also went pretty smoothly. This was also another backage that had to be built in a seperate /build directory.
And to complete the sanity check to make sure the compiling and linking works :
…And it does! (#blessed) . the next test would be to see if binutils builds fine. Which we will be doing in the next post! For now, I’m taking a snapshot. I hope you found this useful, or at the very least entertaining.
-naidneelttil
